Grade 2 Titanium Blind Flange RF Weld Neck Flange ANSI B16.5
Grade 2 Titanium Blind Flange RF Weld Neck Flange ANSI B16.5 is widely used in water conservancy, electric power, power stations, pipe fittings, industrial applications, and pressure vessels. Titanium flanges are manufactured using forging processes with titanium material, making them ideal for mechanical and chemical industries. In addition to titanium flanges, we also manufacture nickel and zirconium flanges.
ASME B16.47 Titanium Flange Specifications
Material: Titanium GR1, GR2, GR7, GR11, GR12 (F2, F7, F11, F12)
Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange, etc.
Connection Type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large tongue groove, Small tongue groove, etc.
Size: 1-1/2" to 120" (DN40 to DN3000)
MOQ: 1 piece
Price Term: EXW factory, FOB, C&F, CIF
Payment Term: T/T, L/C, West Union, Money Gram, etc.
Package: Standard export plywood case or as requested
Applications
Typically used in construction, petroleum, chemical industry, power generation, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing, and electrical applications.
Export Markets: USA, Canada, Australia, Singapore, Indonesia, Hong Kong, Oman, Vietnam, etc.
Physical Properties
| Grade |
Tensile Strength (min) |
Yield Strength (min) |
Elongation (%) |
| GR1 |
35 ksi / 240 MPa |
20 ksi / 138 MPa |
24 |
| GR2 |
50 ksi / 345 MPa |
40 ksi / 275 MPa |
20 |
| GR5 |
130 ksi / 895 MPa |
120 ksi / 828 MPa |
10 |
| GR7 |
50 ksi / 345 MPa |
40 ksi / 275 MPa |
20 |
| GR9 |
90 ksi / 620 MPa |
70 ksi / 438 MPa |
15 |
| GR12 |
70 ksi / 438 MPa |
50 ksi / 345 MPa |
18 |

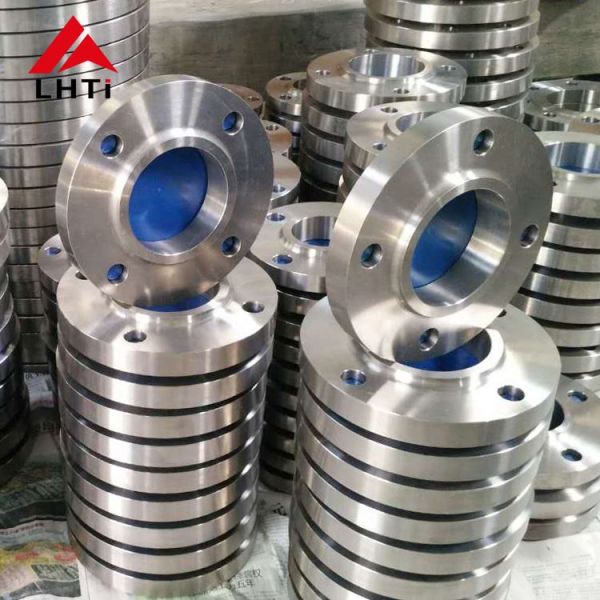

Product Images
